다음과 같이 파일을 만든다.

1. Tiger.java

package Pack01;

import org.springframework.stereotype.Controller;
import org.springframework.web.bind.annotation.RequestMapping;

@Controller
public class Tiger {
	@RequestMapping("/t1")
	public String method01() {
		System.out.println("함수 콜1");
		return null;
	}
	@RequestMapping("/t2")
	public String method02() {
		System.out.println("함수 콜2");
		return "TigerView"; // 내가 갈 JSP 파일명을 적어주면 끝이다.
		// 작명할때, Tiger 클래드면, TigerView라고 적는게 일반적이다.
		// .jsp를 적지 않는다. 왜냐하면, 무조건 .jsp를 찾기 때문이다.
	}
}



2. TigerView.jsp

<%@ page language="java" contentType="text/html; charset=UTF-8"
    pageEncoding="UTF-8"%>
<!DOCTYPE html>
<html>
<head>
<meta charset="UTF-8">
<title>Insert title here</title>
</head>
<body>
	<h1>호랑이</h1>
</body>
</html>



3. dispatcher-servlet.xml

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
	xmlns:context="http://www.springframework.org/schema/context"
	xmlns:mvc="http://www.springframework.org/schema/mvc"
	xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
	xsi:schemaLocation="http://www.springframework.org/schema/beans
	http://www.springframework.org/schema/beans/spring-beans.xsd
	http://www.springframework.org/schema/context
	http://www.springframework.org/schema/context/spring-context.xsd
	http://www.springframework.org/schema/mvc
	http://www.springframework.org/schema/mvc/spring-mvc.xsd">
	<!-- 컨트롤러 위치 설정 -->
	<context:component-scan base-package="Pack01" />
	<mvc:annotation-driven />
	<mvc:default-servlet-handler />
	<!-- 뷰 위치 설정 -->
	<mvc:view-resolvers>
		<mvc:jsp prefix="/WEB-INF/Views/" />
	</mvc:view-resolvers>
</beans>



4. web.xml

<web-app xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
	xmlns="http://Java.sun.com/xml/ns/javaee"
	xsi:schemaLocation="http://java.sun.com/xml/ns/javaee
	http://java.sun.com/xml/ns/javaee/web-app_3_0.xsd"
	id="WebApp_ID" version="3.0">
	<display-name>Archetype Created Web Application</display-name>
	<servlet>
		<servlet-name>dispatcher</servlet-name>
		<servlet-class>org.springframework.web.servlet.DispatcherServlet</servlet-class>
		<load-on-startup>1</load-on-startup>
	</servlet>
	<!--dispatcher 설정 -->
	<servlet-mapping>
		<servlet-name>dispatcher</servlet-name>
		<url-pattern>/</url-pattern>
	</servlet-mapping>
	<!--한글 설정 -->
	<filter>
		<filter-name>encodingFilter</filter-name>
		<filter-class>org.springframework.web.filter.CharacterEncodingFilter</filter-class>
		<init-param>
			<param-name>encoding</param-name>
			<param-value>UTF-8</param-value>
		</init-param>
	</filter>
	<filter-mapping>
		<filter-name>encodingFilter</filter-name>
		<url-pattern>/*</url-pattern>
	</filter-mapping>
</web-app>



5. index.jsp

<%@ page language="java" contentType="text/html; charset=UTF-8"
	pageEncoding="UTF-8"%>
<%@ page import="java.util.*, java.text.*"%>
<%@ taglib prefix="c" uri="http://java.sun.com/jsp/jstl/core"%>
<head>
<title>메인 페이지</title>
</head>
<body>
	<%=new Date()%>
	<h2>Hello World</h2>
	<a href="t1">링크1</a>
	<a href="t2">링크2</a>
	<br />
</body>



6. pom.xml

<project xmlns="http://maven.apache.org/POM/4.0.0"
	xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
	xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/maven-v4_0_0.xsd">

	<modelVersion>4.0.0</modelVersion>
	<groupId>Spring03</groupId>
	<artifactId>Spring03</artifactId>
	<packaging>war</packaging>
	<version>0.0.1-SNAPSHOT</version>
	<name>Spring02 Maven Webapp</name>
	<url>http://maven.apache.org</url>

	<properties>
		<spring.version>4.0.1.RELEASE</spring.version>
	</properties>
	<repositories>
		<repository>
			<id>Spring Plugins</id>
			<url>https://repo.spring.io/plugins-release/</url>
		</repository>
	</repositories>

	<dependencies>
		<dependency>
			<groupId>junit</groupId>
			<artifactId>junit</artifactId>
			<version>4.7</version>
			<scope>test</scope>
		</dependency>

		<dependency>
			<groupId>javax.servlet.jsp</groupId>
			<artifactId>jsp-api</artifactId>
			<version>2.2</version>
		</dependency>

		<dependency>
			<groupId>javax.servlet</groupId>
			<artifactId>javax.servlet-api</artifactId>
			<version>3.0.1</version>
		</dependency>

		<dependency>
			<groupId>org.springframework</groupId>
			<artifactId>spring-webmvc</artifactId>
			<version>4.1.0.RELEASE</version>
		</dependency>

		<dependency>
			<groupId>javax.servlet</groupId>
			<artifactId>jstl</artifactId>
			<version>1.2</version>
		</dependency>
	</dependencies>

	<build>
		<plugins>
			<plugin>
				<groupId>org.apache.maven.plugins</groupId>
				<artifactId>maven-compiler-plugin</artifactId>
				<version>3.0</version>
				<configuration>
					<source>16</source>
					<target>16</target>
				</configuration>
			</plugin>
			<plugin>
				<groupId>org.apache.maven.plugins</groupId>
				<artifactId>maven-war-plugin</artifactId>
				<version>3.3.2</version>
			</plugin>
		</plugins>
	</build>

</project>

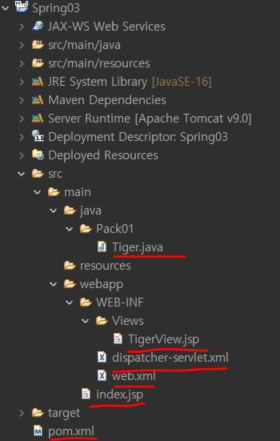

dispatcher-servlet.xml 파일에서 컨트롤러 위치를 Pack01로 설정했기 때문에 컨트롤러를 Pack01폴더 아래에 위치시킨다.
dispatcher-servlet.xml 파일에서 뷰 위치를 WEB-INF/Views로 설정했기 때문에, 뷰를 Views폴더 아래에 위치시킨다.
반드시 클래스 위에 @Controller 적어주어 Tiger.java가 Controller라는 것을 명시시켜줘야한다. 또한, @RequestMapping을 적어주어 아이디가 context.xml에서 불렸을때

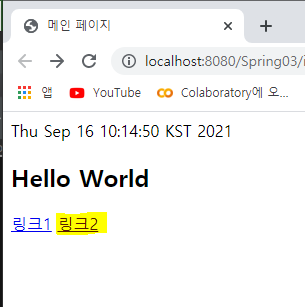

다음과 같이 링크2를 눌렀을때,
호랑이가 출력된다.
